VDL KONINGS
COARSE MATERIAL SEPARATOR
Protecting your installation
from blockages and damage
The VDL Konings coarse material separator is specifically designed to remove large, hard objects from sludge. This robust machine protects your installation from blockages and damage, ensuring efficient processing of sludge with a dry solids content of 15–50%.
Available in two models:
- SUW 300-900
- SUW 300-1400
Universally applicable
No adjustments are needed for different types of sludge – plug & play.
Adjustable roller gap
Customizable roller gap (3–15 mm) ensures optimal material separation.
High capacity
Processes up to 50 m³ per hour at a roller gap of 15 mm.
Effective separation
Removes foreign objects up to 400 × 200 × 200 mm for an optimal purification process.
Low-maintenance

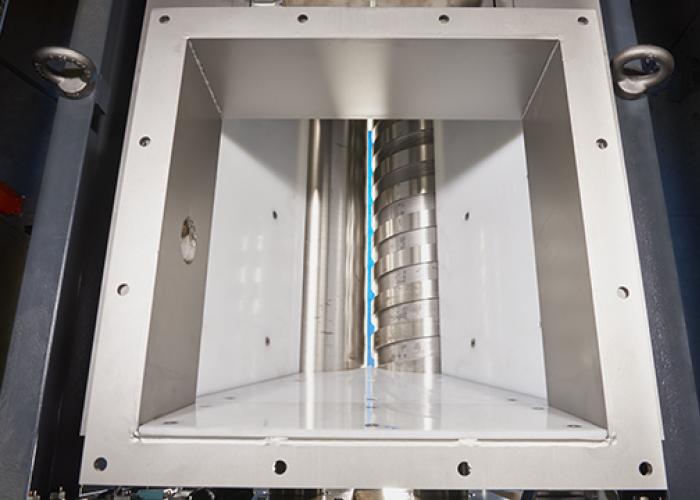

With only two rotating rollers, the system ensures easy and economical maintenance.
Designed for reliable 24/7 operation
Engineered for continuous operation, with proven quality and long-lasting durability.
Energy-efficient design
Uniform rotation of lightweight components ensures minimal energy consumption.
